Provisioning Linux Virtual Machine With Sample Post Configuration

Provisioning Linux Virtual Machine With Sample Post Configuration

In Last Post We Provisioned Windows Server , Today we are going to create Linux Virtual machine using existing Resource Group, Virtual Network , Network Security Group, Public IP and NIC Card

Here is the Code:

---

# First Step is to login using Login-AzureRmAccount

Login-AzureRmAccount

# Variables declaration Area Now lets See the Resource Group Present

$Rg="Osgroup"

$Vnet="OsgroupVnet"

$VmName="osgroup"

$Location="South Central US"

$Cred=Get-Credential

$Nsg="sylesh-nsg"

$Nic="osgroupNIC"

$Pip="PIPOSGRP"

$LinuxPublisher="Canonical"

$LinuxOffer="UbuntuServer"

$Skus="16.04-LTS"

$VmSize="Standard_D1_v2"

# Getting the Vnet/Nsg and Nic Information existing in my account

$VirtualNetwork=Get-AzureRmVirtualNetwork -ResourceGroupName $Rg -Name $Vnet

$VirtualNetwork

$NetworkSecurityGroup=Get-AzureRmNetworkSecurityGroup -ResourceGroupName $Rg -Name $Nsg

$NetworkSecurityGroup

$NetwokInterfaceCard=Get-AzureRmNetworkInterface -ResourceGroupName $Rg -Name $Nic

$NetwokInterfaceCard

$PublicIp=Get-AzureRmPublicIpAddress -ResourceGroupName $Rg -Name $Pip

$PublicIp

Get-AzureRmVMSize -Location $Location

# First Lets See the Publisher Name

Get-AzureRmVMImagePublisher -Location $Location | select PublisherName

#Lets See the Offer for that publisher at that location

Get-AzureRMVMImageOffer -Location $Location -PublisherName $LinuxPublisher

#Now Lets Check $SKU for that offer

Get-AzureRmVMImageSku -PublisherName $LinuxPublisher -Location $Location -Offer $LinuxOffer

#Now lets Configure VMConfig using

$VmConfig=New-AzureRmVMConfig -VMName $VmName -VMSize $VmSize |`

Set-AzureRmVMOperatingSystem -Linux -ComputerName $VmName -Credential $Cred | `

Set-AzureRmVMSourceImage -PublisherName $LinuxPublisher -Offer $LinuxOffer -Skus $Skus -Version latest | `

Add-AzureRmVMNetworkInterface -Id $NetwokInterfaceCard.id

# Creating New Virtual Machine

New-AzureRmVM -ResourceGroupName $Rg -Location $Location -VM $VmConfig

# ExtensionScript

$PublicSettings = '{"commandToExecute":"useradd ramu"}'

# Executing Extension Script

Set-AzureRmVMExtension -Name "USERADD" -Publisher "Microsoft.Azure.Extensions" -ExtensionType "CustomScript" -TypeHandlerVersion 2.0 `

-VMName $VmName -SettingString $PublicSettings -Location $Location -ResourceGroupName $Rg

# Getting Public Ip address to Connect to the VM $PublicIp=Get-AzureRmPublicIpAddress -ResourceGroupName $Rg -Name $Pip

#Getting VM status

Get-AzureRmVM -Status

# Getting Detailed Information

Get-AzureRmVM -Name osgroup -ResourceGroupName Osgroup -DisplayHint Expand -Status

# Stopping Virtual Machine

Stop-AzureRmVM -Name $VmName -ResourceGroupName $Rg -Confirm -Force

---




Description:

 We login to Azure portal using Login-AzureRmAccount,we are prompted for the credentials

 We Define Variables We also Set $Cred to Store the Credentials for VM

 Now Getting the Existing VNETS/NSG/NIC/PUBLICIP

---

$VirtualNetwork=Get-AzureRmVirtualNetwork -ResourceGroupName $Rg -Name $Vnet

$VirtualNetwork

$NetworkSecurityGroup=Get-AzureRmNetworkSecurityGroup -ResourceGroupName $Rg -Name $Nsg

$NetworkSecurityGroup

$NetwokInterfaceCard=Get-AzureRmNetworkInterface -ResourceGroupName $Rg -Name $Nic

$NetwokInterfaceCard

$PublicIp=Get-AzureRmPublicIpAddress -ResourceGroupName $Rg -Name $Pip

$PublicIp

---

NSG:

NIC:

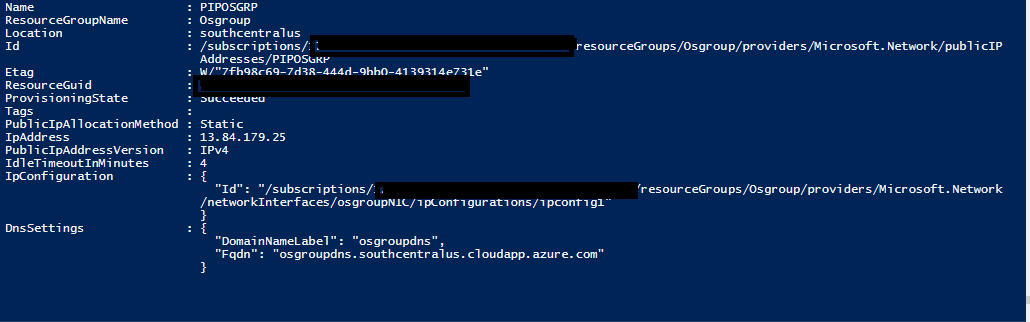

Public IP

We Setup the Variables Depending upon the Output we get

---

Get-AzureRmVMSize -Location $Location

---

---

Get-AzureRmVMImagePublisher -Location $Location | select PublisherName

---

---

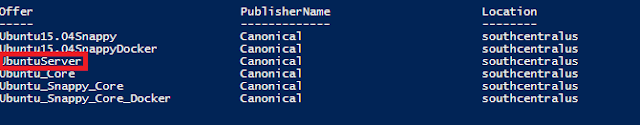

Get-AzureRMVMImageOffer -Location $Location -PublisherName $LinuxPublisher

---

---

Get-AzureRmVMImageSku -PublisherName $LinuxPublisher -Location $Location -Offer $LinuxOffer

---

And then Finally We See the Status of VM

---

Get-AzureRmVM -Status

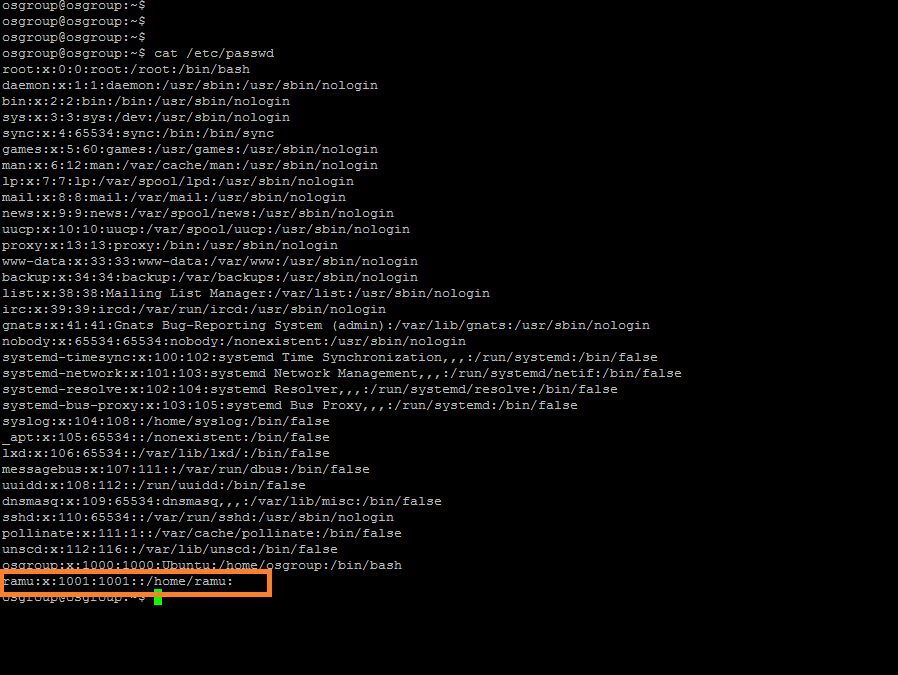

Connect to VM and Check if User has been created mentioned in Vm Extension
